Systems Fundamentals

Linux, command line, scripting

Anirban Mandal, Erik Scott, Sajith Sasidharan (RENCI, UNC Chapel Hill)

Ewa Deelman, Karan Vahi, Mats Rynge (ISI, USC)

Matthew Miller, Werner Sun, Peter Ko, Kelly Nygren, Keara Soloway, Rolf Verberg (CHESS, Cornell)

Brandon Sorge (IUPUI)

Preliminaries

• Who are you people?
• https://xcitecourse.org/theme2/sf100/
• Getting into CLASSE Linux systems

• I do not have a good idea about the audience of this workshop. What is your background?
• Do you know how to launch a terminal?
• Do you know use ssh?
• Do you use JupyterLab?
• Do you use command line?

• Do you use Windows, macOS, or Linux?

Assumptions

• You have your CLASSE accounts set up.

  • Talk to CLASSE staff otherwise!

• Options:

  • Use ssh
  • Use NoMachine
  • Use JupyterLab

Use SSH

ssh ${username}@lnx201.classe.cornell.edu

• Use terminal or iTerm on macOS.
• Use whichever terminal you want on Linux.
• Use PuTTY (https://putty.org/) on Windows.

• Use terminal or iTerm on macOS. There are other choices too, but these seem popular.
• Use whatever terminal you want on Linux. You know what you are doing, and you know how to figure out stuff.
• Use PuTTY on Windows. I am not up to speed on Windows.

Use NoMachine

https://wiki.classe.cornell.edu/Computing/NoMachine

• There is a client that you can install.
• There is also web access, which I have used a few times. Seemed shaky.

Use JupyterLab

https://jupyter01.classe.cornell.edu/

• Use the terminal icon on the launcher.
• Or use File -> New -> Terminal

Linux, command line, etc.

Linux

• A popular operating system.
  • (Actually an OS kernel, plus userland from various other projects. But those are details…)
• Unix-like, which traces back to 1969, therefore has accumulated quirks.
  • Expect “hysterical raisins”.

lnx201

• The Linux host we’ll be using is lnx201.classe.cornell.edu.
• Runs a distribution called Scientific Linux.
• Good enough for general use.
• Do not run anything resource heavy on lnx201.
  • “Heavy” in terms CPU, memory, network usage etc.
  • lnx201 is a shared resource.
• There is a Compute Farm to run heavy things.

• I am not the expert on lnx201 or compute farm. I just happen to present today!

The command line

• You will type commands in a shell, at the shell prompt, hit enterenter key, and then things happen.

• All of this is a text user interface.

• As opposed to clicking on GUI widgets.

• The prompt is that piece of text that begins with [ and ends with ] $. They can look different too.

Commands

• Commands are either programs or shell builtins.

• Use one of these commands to read documentation:

  • man ${command}
  • info ${command}
  • or ${command} --help (sometimes!)

• Programs can be compiled or scripts.
• They live somewhere in your $PATH.

The shell

• A program that accepts commands, and passes those commands to the OS to execute.
• A popular shell is bash, which is the default on lnx201.

Of course there are other shells too: zsh (default on newer versions of macOS, fish, ksh, etc.

Bash

• “Bourne-again shell”
  • Based on an earlier Bourne shell, thus the “again”.
  • Developed by the GNU project.
  • On lnx201, /bin/bash is the program.
• For documentation: info bash or man bash.

• GNU people made a lot of the software early on.

• Also Unix people, BSD people, X11 people, and a whole bunch of other people.
• Then the Linux kernel came along, became successful, and people started to call the whole combination of all these things “Linux”.

Bash niceties: history and completion

• You do not have to re-type commands that you have used in the past!
  • Use upup and downdown arrow keys to go back and forth in your command history.
  • Use Ctrl-RCtrl-R (Control+R) to “search” command history.
  • Use history command to list your shell history.
• Use tabtab key for command completion, after typing a few characters.

Files and directories

Unix slogan: Everything is a file!

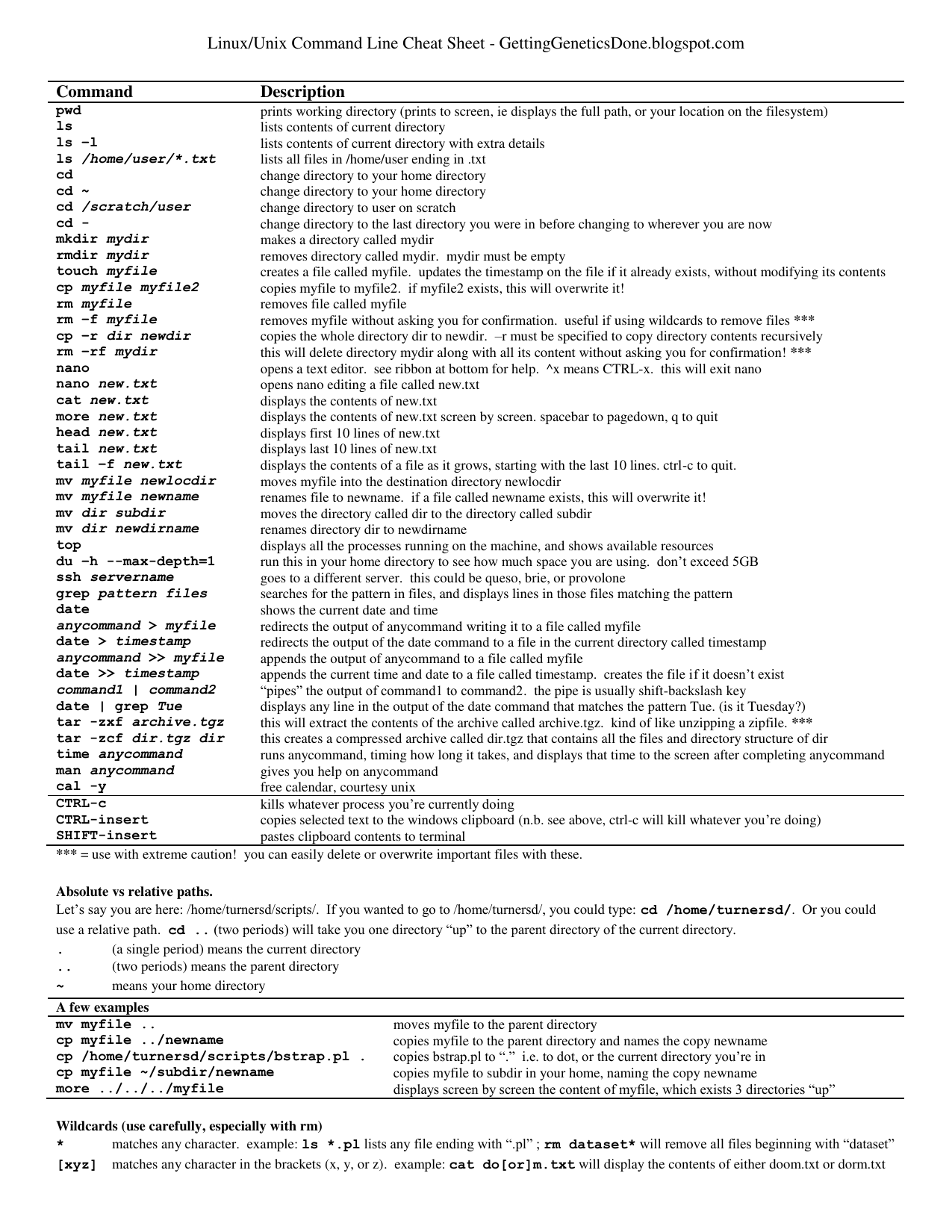

Some helpful commands

Command	Task	Example Syntax
ls	list the files in a directory	ls [/tmp]
cd	move into a directory	cd [/tmp]
pwd	show curent working directory	pwd
cp	copy a file to into another directory, or make a copy with a different name	cp [file.txt] [/tmp/file.txt]
cp -r	copy a folder to into another directory	cp [file.txt] [/tmp/file.txt]
mv	rename or move a file into another directory	mv [file.txt] [file1.txt]
rm	delete a file	rm [file.txt]
rm -r	remove a directory, recursively	rm -r [dir]
mkdir	create a directory	mkdir [dir]
find	find a file	find [/tmp] -name [file]
grep	search for a text pattern inside a file	grep [text] [/tmp/file.txt]
less	to view the text of a text file, one screen at a time	less [/tmp/file.txt]
exit	exit and logout of a Terminal (Terminal-xfce4) session	exit

Source: https://wiki.classe.cornell.edu/Computing/SummerStudentOrientation#Linux_Command_Line_40ls_44_cd_44_mv_44_find_44_grep_etc_41

Directory navigation

[ssasidharan@lnx201 ~]$ tree -d -L 1 /
/
├── bin -> usr/bin
├── boot
├── cdat
├── cifs
├── cvmfs
├── dev
├── etc
├── home
├── lib -> usr/lib
├── lib64 -> usr/lib64
├── media
├── misc
├── mnt
├── net
├── nfs
├── opt
├── proc
├── root
├── run
├── sbin -> usr/sbin
├── srv
├── sys
├── tmp
├── usr
└── var

25 directories

• Directories and files are organized in a tree like structure.
• Well, an inverted tree, maybe.
• At the bottom (or top?), you have the “/” directory.

Your home directory

• You have a “home” directory.
  • You can write your files and create directories here.
• Usually, and on lnx201, this will be /home/$USER
  • Also known as $HOME

• The stuff that follows $ are environment variables aka env vars. They are sort of key-value pairs managed by the shell.

• There are a set of standard env vars such as $USER, $HOME, $SHELL etc.

• Don’t write too much on your home directory.

• There are better places top store large amounts of data.

• I am not the expert here. Ask around, or wait for the next presenter.

Those $WHATEVER things

• What are $HOME, $USER, $PATH, $SHELL, etc.?
• They are called environment variables, or env vars.
• Env vars are pieces of information maintained by the shell.
• Programs can use them during execution.
• Use printenv or env command to list them.

The current working directory

• At any time in the shell, you are “inside” a single directory, called the current working directory.
  • When you do ls, files in current working directory will be listed, etc.
• When you log in, your current working directory will be your home directory: /home/$USER aka $HOME.
• You will use cd (change directory) to move around.
• Use the command pwd to find where you are.
  • Or echo $PWD.

Absolute and relative paths

File/folder names are also referred to as paths.

• Absolute path names begin with the root directory, /.
  • Example: /home/ssasidharan/Documents/hello.txt
• Relative paths start with the working directory.
  • Example: ./Documents/hello.txt (or just Documents/hello.txt) when I’m in my home directory.

Some fun facts about file names

• Names that begin with “.” are “hidden”.
  • They are omitted from directory listing when you do ls.
  • Do ls -a (or ls --all) to list them.
• . and .. are special directory names.
  • . stands for the current directory.
  • .. stands for the directory above the current directory.

Some more fun facts about file names

• File and directory names are case sensitive.
  • Depends on filesystem, but that is a detail.
• It is better to avoid spaces in file names, because they are a hassle.
  • Use _ (underscore character) instead (example: file_name), or CamelCase (example: FileName).
  • Quote paths within " and " if they happen to have spaces, or “escape” each space with \.

Wildcards

Some characters are given special treatment:

• * matches any set of characters.

[ssasidharan@lnx201 ~]$ ls /usr/bin/ab*
/usr/bin/ab  /usr/bin/abs2rel

• ? matches any one character.

[ssasidharan@lnx201 ~]$ ls /usr/bin/?abc*
/usr/bin/kabc2mutt  /usr/bin/kabcclient

Standard input, output, and error

• Input is read from standard input (or stdin).
• Output is written to standard output (or stdout).
• Error messages are written to standard error (or stderr).

Note

They are files too: /dev/stdin, /dev/stdout, and /dev/stderr.

I/O redirection

You can redirect stdout to a file with > operator:

[ssasidharan@lnx201 ~]$ ls -l > ls-output.txt

Or append with >>:

[ssasidharan@lnx201 ~]$ ls -l >> ls-output.txt

To direct a file to a programs input, use < operator:

[ssasidharan@lnx201 ~]$ cat < sonnet18.txt
Shall I compare thee to a summer’s day?

Pipes

• Using the | (“pipe”) operator, you can “chain” programs such that one programs output is another programs input:

[ssasidharan@lnx201 ~]$ ls -l /bin/ | less

• You can create longer pipes:

[ssasidharan@lnx201 ~]$ ls /bin /sbin | sort | uniq | wc
   4289    4288   46820

Users and Groups

You belong (to groups)

Your account belongs to several groups:

[ssasidharan@lnx201 ~]$ id
uid=63499(ssasidharan) gid=262(chess) groups=262(chess),750(classeuser)
[ssasidharan@lnx201 ~]$ groups
chess classeuser

Permissions and ownership

Do a “long” file listing (with ls -l) and behold:

$ ls -l
total 8
drwxr-xr-x  2 ssasidharan chess   44 May  8 10:42 bin
drwxr-xr-x  2 ssasidharan chess  144 Mar 12 00:27 CLASSE_shortcuts
drwxr-xr-x  2 ssasidharan chess   52 Apr  2 00:27 Desktop
drwxr-xr-x  2 ssasidharan chess   28 Apr  2 00:27 Documents
lrwxrwxrwx  1 ssasidharan chess   31 Mar 26 15:21 Downloads -> /cdat/tem/ssasidharan/Downloads
-rw-r--r--  1 ssasidharan chess   54 Jun  2 12:38 hello.sh
drwxr-xr-x  2 ssasidharan chess   28 Apr  2 00:27 Music
drwxr-xr-x  2 ssasidharan chess   28 Apr  2 00:27 Pictures
drwxr-xr-x  2 ssasidharan chess   28 Apr  2 00:27 Public
drwxr-xr-x  2 ssasidharan chess   28 Apr  2 00:27 Templates
drwxr-xr-x  2 ssasidharan chess   28 Apr  2 00:27 Videos

What do those characters mean?

Changing permissions

• Use chmod command to change file mode bits (the first column in the previous listing).

[ssasidharan@lnx201 ~]$ chmod +x test.sh
[ssasidharan@lnx201 ~]$ ls -l test.sh
-rwxr-xr-x 1 ssasidharan chess 0 Mar 28 13:39 test.sh
[ssasidharan@lnx201 ~]$ chmod -x test.sh
[ssasidharan@lnx201 ~]$ ls -l test.sh
-rw-r--r-- 1 ssasidharan chess 0 Mar 28 13:39 test.sh

• Use chown and chgrp commands to change owner and group (the third and fourth columns in the previous listing).
  • Probably not immediately useful; just know that they exist.

Processes

Listing processes

• List running processes using ps command:

[ssasidharan@lnx201 ~]$ ps
    PID TTY          TIME CMD
 694411 pts/81   00:00:00 ps
3479688 pts/81   00:00:00 bash

The four columns:

• PID is process id.
• TTY is the terminal associated with the process.
• TIME is the elapsed CPU time for the process.
• CMD is the command that created the process.

(Also see: top and htop.)

Background and foreground processes

• Some processes run in the foreground:
  • They read input, write output, etc.
  • They are “attached” to a terminal.
• Background processes, well, run in the background. Send things to the background with &:

[ssasidharan@lnx201 ~]$ sleep 100 &
[1] 949751

• Bring a background process to foreground using fg command, and terminate it using Ctrl-CCtrl-C:

[ssasidharan@lnx201 ~]$ fg 2
sleep 100
^C

Terminating processes

• kill PID command to end one process.
• killall command to end many processes.
  • You can’t kill other user’s processes.

Other tools of the trade

Text editors

Many choices! Use:

• Emacs
• Vim
• Nano
• JupyterLab

Terminal multiplexers

screen and tmux are two options. Here’s tmux.

• You can “multiplex” your terminal.
• Different shells in different “windows”.
• You can split panes vertically or horizontally.
• You can detach and re-attach, and resume your work.

Shell scripts

Hello world!

hello.sh

#! /bin/bash

# A simple script.

echo "Hello $USER!"

1

The “shebang”

2

A comment.

3

An actual line of code.

• Make the thing executable with chmod +x hello.sh
• Run the thing with ./hello.sh

Other things

Bash supports a programming language with:

• if statements
• for, while, until statements
• functions
• et cetera.
• Take a peek at /etc/bashrc and $HOME/.bashrc for a taste

BUT

• This is not really in scope of this presentation.

Some resources

A cheat sheet

(Via Stephen Turner.)

Resources elsewhere

• The Linux Command Line, A Complete Introduction by William E. Shotts, Jr. The book is freely available under a Creative Commons license, and contains a good discussion about shell scripting.
• The Unix Programming Environment by Brian W. Kernighan and Rob Pike. Old classic, still useful. Places things in a historical context.
• Shell Tools and Scripting module of MIT “The Missing Semester of Your CS Education” class.

Other resources

• The Internet is pretty great. Use it.
• However: DO NOT trust everything you read on the Internet.
  • Do not copy and paste commands from the Internet indiscriminately.
  • Understand how things work, and then use it.

Fin!

https://xcitecourse.org/theme2/sf100/

Contributions are welcome!

• Report issues!
• Send your pull requests!
